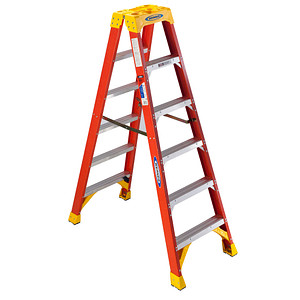

T6206AS 6 ft Type IA Fiberglass Twin Ladder


Performance Overview

StyleSizeReach HeightLoad CapacityType
Twin6 ft10 ft300 lbsType IA Duty Rating

The T6206AS Fiberglass 6 ft Twin Step Ladder offers a high performance dual HolsterTop with a paint and tool holder for convenience. The internal spreaders are heavy duty and the slip-resistant TRACTION-TRED® steps are all double riveted and knee braced. These twin Step Ladders allow 300 lbs per side making them ideal for one or two person jobs. The EDGE® molded brace and foot pad combination provide bracing strength and increased protection against damage. Fiberglass rails are non-conductive for working near electricity.




Features

  • High performance dual HolsterTop paint and tool holder
  • 4 rivets attach top to each rail
  • Double riveted slip-resistant TRACTION-TRED® steps
  • Heavy duty internal spreaders
  • Steps are knee-braced
  • EDGE® molded brace and foot pad combination provides enhanced bracing strength and increased protection against damage
  • Slip-resistant foot pads attached to the EDGE® structure
  • *Energy Diffusing Geometry
  • Every rivet backed up by metal, metal plates or washers to protect rails
  • Design for one or two-person jobs
  • Maximum load per side, including person and materials, shall not exceed duty rating of ladder


Specifications

FeatureSize / Details
Size6 ft
StyleTwin
Reach Height10 ft
Maximum Standing Ht3 ft 10 in
Load Capacity300 lbs
TypeType IA Duty Rating
MaterialFiberglass
Approx. Product Width23-3/8 in
CertificationsANSI A14.5 (2007); OSHA
Approx. Spread50-1/8 in
Edge BracingHeavy
Spreader MaterialSteel
Approx. Shipping Weight (kg)27
Approx. Cu. Ft. Per Unit8
Description of Top Features2 paint tray slots, 6 tool holes, 2 drill holes, 2 quart paint cans, gallon paint can, 2 parts trays
Performance Rating




Package Contents

Part NumberQtyDescription

Dimensions

FeatureSize
Top Dimension8-1/2 in x 13 in
Front Rails3-1/8 in
Front Flange1-3/16 in
Rear Rails3-1/8 in
Step Depth3 in


Additional T6200AS Series Models

Model No.SizeReach HeightMaximum Standing HtApprox. Product WidthApprox. SpreadApprox. Shipping Weight (kg)
T6204AS4 ft8 ft1 ft 11 in19-7/8 in36-1/8 in19
T6206AS6 ft10 ft3 ft 10 in23-3/8 in50-1/8 in27
T6208AS8 ft12 ft5 ft 9 in26-7/8 in64-1/8 in37
T6210AS10 ft14 ft7 ft 8 in30-3/8 in78-1/8 in5
